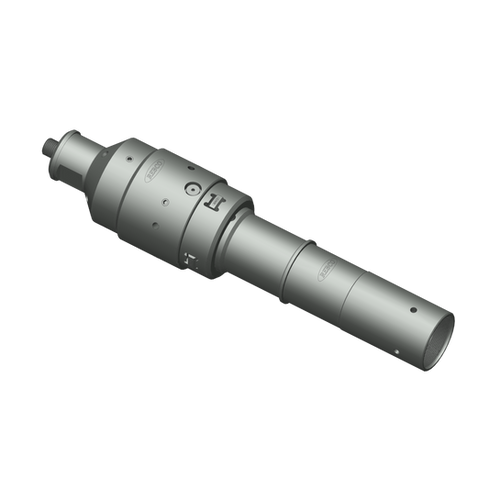

The Rebco ROTRX Running Tool is a dog-engagement running tool that extends the capabilities of the ROTR by also setting ROTRQ, ROTRPT, ROTRNT, ROTX, and ROTXN Lock Mandrels, in addition to the standard ROTR and ROTRN types. This broader compatibility makes the ROTRX particularly valuable on completions where multiple lock mandrel types are present in the same wellbore, allowing the operator to reduce the number of different running tools required on the service unit.

The ROTRX is most commonly used for installations in the uppermost landing nipples of the completion string, particularly when tubing- or wireline-retrievable safety valves are being installed or serviced. Its operational mechanics mirror those of the ROTR. The lock mandrel keys can be placed in either the control or locating position, depending on whether a selective or No-Go set is required. Available in nominal sizes from 1.375" to 4.813".

How to Order: Available in assembly numbers from 41182012500 (1.250") through 41182048100 (4.813"). Specify nominal size when ordering. Assembly and test sleeves are available as accessories.
