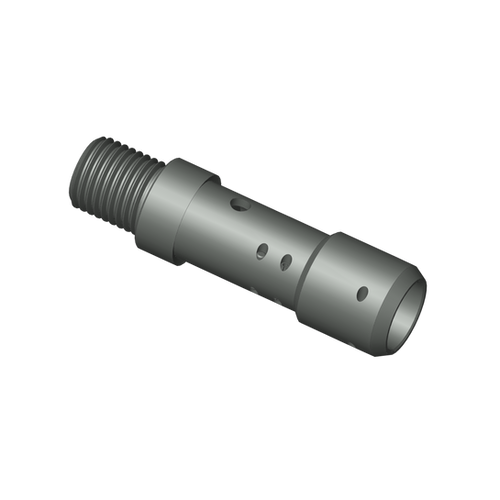

Running Tools for Gas Lift
Six dedicated running tools are available for gas lift valve and mandrel installations. Each is matched to a specific valve latch type, valve size, and mandrel series:
Tool | Latch Type | Valve Size | Mandrel | Max OD | FN OD | Length |
ROTGA-2 | Collet | 1'' | K Series | 1.187'' | 1.187'' | 4.37'' |
ROTJC-3 | R / RA | 1 1/2'' | M Series | 1.750'' | 1.375'' | 13.12'' |
ROTJC-5 | R / RA | 1 1/2'' | O Series | 1.750'' | 1.375'' | 7.50'' |
ROTJK-2 | BK / BK-2 | 1'' | K Series | 1.312'' | 1.187'' | 4.56'' |
ROTRE | ER | 1'' | K Series | 1.375'' | 1.375'' | 7.34'' |
ROTRK-1 | RK | 1 1/2'' | M Series | 1.437'' | 1.187'' | 7.00'' |
All gas lift running tools use a 15/16–10 pin thread connection and are ordered by specifying the tool type and mandrel/valve series. Contact Rebco for additional gas lift running tool configurations not listed above.
