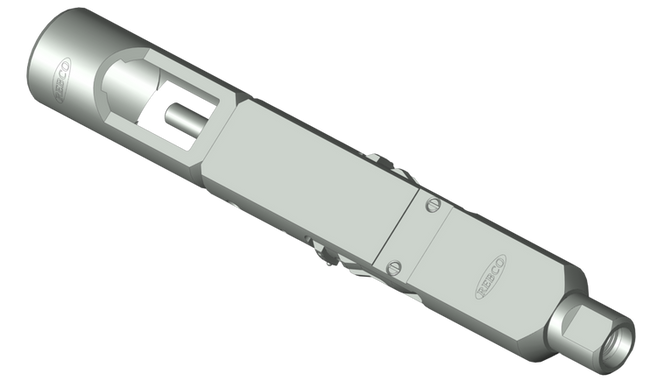

ROTRNS Soft Set Bomb (Instrument) Hanger Assembly

Rebco ROTRNS Soft Set Bomb (Instrument) Hanger is designed to set Instruments into ROTR & ROTRN Landing Nipples of the same size. The Soft Set Bomb (Instrument) Hanger does not require jarring to be set into the Landing Nipple.

Two types of Running Tools are offered: Hydraulic or Mechanical. The choice is determined by the Operator or the Well conditions.


Product Code: 33

Applications

  • Deploying shock-sensitive electronic or precision mechanical recording instruments that cannot tolerate jar-down set impacts

  • ROTR and ROTRN Landing Nipple installations where a soft, controlled setting method is required

  • High-value instrument deployments where the risk of instrument damage from jarring is unacceptable


Key Benefits

  • Jar-free soft setting protects sensitive recording instruments from the shock loads associated with conventional hanger setting.

  • Choice of hydraulic (ROTHR) or mechanical (ROTMR) running tool provides flexibility based on well conditions

  • ROTGR Pulling Tool with matched Pulling Prong provides a complete, dedicated retrieval solution

  • NACE MR-01-75 alloy construction standard across all sizes for sour service compatibility

  • Available in non-standard sizes and materials upon request

  • Material - Norm Alloy (NACE MR-01-75, 1980 Rev.)


NOTE: Rebco ROTRNS Instrument Hangers are available in Sizes not shown and variety of Materials suitable for the Well Conditions.

TECHNICAL DATA

NOM SIZE

SEAL BORE SIZE

ASS'Y NUMBER 3/4-10_=0

'5/8' SR_=0

RUNNING TOOL

PULING TOOL

PULLING PRONG

HYDRAULIC

MECHANICAL

Type 'ROTHR'

Type 'ROTMR'

Type 'ROTGR'

2 3/8”

1.875”

331310141873_

4106132000

4109131870

40051318700

49111211

2.125”

331310142123_

2 7/8”

2.188”

331310142183_

4106132500

4109132310

40051321800

49111212

2.313”

331310142313_

40051323100

3 1/2”

2.562”

331310142563_

4106132500

4109132310

40051323100

49111212

2.750”

331310142753_

4106132000

4109132750

40051327500

49111213

2.813”

331310142813_

4106132000

4 1/2”

3.688”

331310143683_

4106133500

4109133500

40051331202

49111380

3.813”

331310143813_

4106134500

4109134500

40051336804

49111231


RELATED TOOLS

Disclaimer: Information is provided for reference only. Rebco Oil Tools, Inc. makes no express or implied warranty as to the accuracy or completeness of this information. Equipment selection, configuration, and use must be performed by qualified personnel and are subject to approved procedures, well conditions, mechanical limitations, and Rebco’s Terms and Conditions of Sale.
